Locally projective nonlinear noise reduction

A more sophisticated method makes use of the hypotheses that the measured data is composed of the output of a low-dimensional dynamical system and of random or high-dimensional noise. This means that in an arbitrarily high-dimensional embedding space the deterministic part of the data would lie on a low-dimensional manifold, while the effect of the noise is to spread the data off this manifold. If we suppose that the amplitude of the noise is sufficiently small, we can expect to find the data distributed closely around this manifold. The idea of the projective nonlinear noise reduction scheme is to identify the manifold and to project the data onto it. The strategies described here go back to Ref. [61]. A realistic case study is detailed in Ref. [62].

Suppose the dynamical system, Eq. (gif) or Eq. (gif), form a q-dimensional manifold tex2html_wrap_inline7171 containing the trajectory. According to the embedding theorems, there exists a one-to-one image of the attractor in the embedding space, if the embedding dimension is sufficiently high. Thus, if the measured time series were not corrupted with noise, all the embedding vectors tex2html_wrap_inline7173 would lie inside another manifold tex2html_wrap_inline7175 in the embedding space. Due to the noise this condition is no longer fulfilled. The idea of the locally projective noise reduction scheme is that for each tex2html_wrap_inline7173 there exists a correction tex2html_wrap_inline7179, with tex2html_wrap_inline7181 small, in such a way that tex2html_wrap_inline7183 and that tex2html_wrap_inline7179 is orthogonal on tex2html_wrap_inline7175. Of course a projection to the manifold can only be a reasonable concept if the vectors are embedded in spaces which are higher dimensional than the manifold tex2html_wrap_inline7175. Thus we have to over-embed in m-dimensional spaces with m>q.

The notion of orthogonality depends on the metric used. Intuitively one would think of using the Euclidean metric. But this is not necessarily the best choice. The reason is that we are working with delay vectors which contain temporal information. Thus even if the middle parts of two delay vectors are close, the late parts could be far away from each other due to the influence of the positive Lyapunov exponents, while the first parts could diverge due the negative ones. Hence it is usually desirable to correct only the center part of delay vectors and leave the outer parts mostly unchanged, since their divergence is not only a consequence of the noise, but also of the dynamics itself. It turns out that for most applications it is sufficient to fix just the first and the last component of the delay vectors and correct the rest. This can be expressed in terms of a metric tensor tex2html_wrap_inline7195 which we define to be [61]
where m is the dimension of the ``over-embedded'' delay vectors.

Thus we have to solve the minimization problem
with the constraints
where the tex2html_wrap_inline7199 are the normal vectors of tex2html_wrap_inline7175 at the point tex2html_wrap_inline7203.

This ideas are realized in the programs ghkss, and project in TISEAN. While the first two work as a posteriori filters on complete data sets, the last one can be used in a data stream. This means that it is possible to do the corrections online, while the data is coming in (for more details see section gif). All three algorithms mentioned above correct for curvature effects. This is done by either post-processing the corrections for the delay vectors (ghkss) or by preprocessing the centres of mass of the local neighborhoods (project).

The idea used in the ghkss program is the following. Suppose the manifold were strictly linear. Then, provided the noise is white, the corrections in the vicinity of a point on the manifold would point in all directions with the same probability. Thus, if we added all the corrections tex2html_wrap_inline7205 we expect them to sum to zero (or tex2html_wrap_inline7207). On the other hand, if the manifold is curved, we expect that there is a trend towards the centre of curvature (tex2html_wrap_inline7209). Thus, to correct for this trend each correction tex2html_wrap_inline7205 is replaced by tex2html_wrap_inline7213.

A different strategy is used in the program project. The projections are done in a local coordinate system which is defined by the condition that the average of the vectors in the neighborhood is zero. Or, in other words, the origin of the coordinate systems is the centre of mass tex2html_wrap_inline7215 of the neighborhood tex2html_wrap_inline6891. This centre of mass has a bias towards the centre of the curvature [2]. Hence, a projection would not lie on the tangent at the manifold, but on a secant. Now we can compute the centre of mass of these points in the neighborhood of tex2html_wrap_inline7173. Let us call it tex2html_wrap_inline7221. Under fairly mild assumptions this point has twice the distance from the manifold then tex2html_wrap_inline7215. To correct for the bias the origin of the local coordinate system is set to the point: tex2html_wrap_inline7225.

The implementation and use of locally projective noise reduction as realized in project and ghkss is described in detail in Refs. [61, 62]. Let us recall here the most important parameters that have to be set individually for each time series. The embedding parameters are usually chosen quite differently from other applications since considerable over-embedding may lead to better noise averaging. Thus, the delay time is preferably set to unity and the embedding dimension is chosen to provide embedding windows of reasonable lengths. Only for highly oversampled data (like the magneto-cardiogram, Fig. gif, at about 1000 samples per cycle), larger delays are necessary so that a substantial fraction of a cycle can be covered without the need to work in prohibitively high dimensional spaces. Next, one has to decide how many dimensions q to leave for the manifold supposedly containing the attractor. The answer partly depends on the purpose of the experiment. Rather brisk projections can be optimal in the sense of lowest residual deviation from the true signal. Low rms error can however coexist with systematic distortions of the attractor structure. Thus for a subsequent dimension calculation, a more conservative choice would be in order. Remember however that points are only moved towards the local linear subspace and too low a value of q does not do as much harm as may be though.

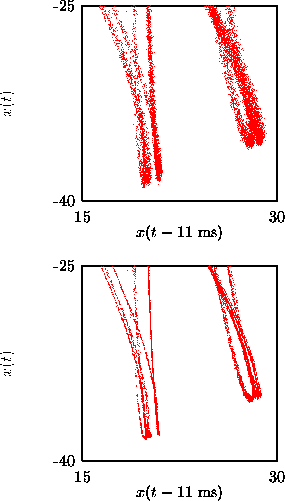

Figure:   Two-dimensional representation of the NMR Laser data (top) and the result of the ghkss algorithm (bottom) after three iterations.

The noise amplitude to be removed can be selected to some degree by the choice of the neighborhood size. In fact, nonlinear projective filtering can be seen independently of the dynamical systems background as filtering by amplitude rather than by frequency or shape. To allow for a clear separation of noise and signal directions locally, neighborhoods should be at least as large as the supposed noise level, rather larger. This of course competes with curvature effects. For small initial noise levels, it is recommended to also specify a minimal number of neighbors in order to permit stable linearizations. Finally, we should remark that in successful cases most of the filtering is done within the first one to three iterations. Going further is potentially dangerous since further corrections may lead mainly to distortion. One should watch the rms correction in each iteration and stop as soon as it doesn't decrease substantially any more.

As an example for nonlinear noise reduction we treat the data obtained from an NMR laser experiment [63]. Enlargements of two-dimensional delay representations of the data are shown in Fig. gif. The upper panel shows the raw experimental data which contains about 1.1% of noise. The lower panel was produced by applying three iterations of the noise reduction scheme. The embedding dimension was m=7, the vectors were projected down to two dimensions. The size of the local neighborhoods were chosen such that at least 50 neighbors were found. One clearly sees that the fractal structure of the attractor is resolved fairly well.

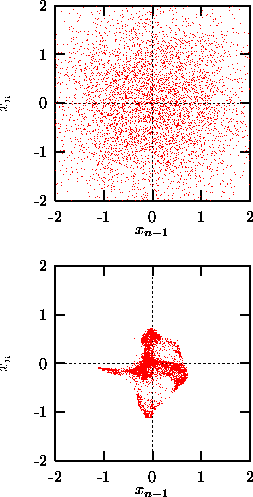

Figure:   Two-dimensional representation of a pure Gaussian process (top) and the outcome of the ghkss algorithm (bottom) after 10 iterations. Projections from m=7 down to two dimensions were performed.

The main assumption for this algorithm to work is that the data is well approximated by a low-dimensional manifold. If this is not the case it is unpredictable what results are created by the algorithm. In the absence of a real manifold, the algorithm must pick statistical fluctuations and spuriously interprets them as structure. Figure gif shows a result of the ghkss program for pure Gaussian noise. The upper panel shows a delay representation of the original data, the lower shows the outcome of applying the algorithm for 10 iterations. The structure created is purely artifical and has nothing to do with structures in the original data. This means that if one wants to apply one of the algorithms, one has to carefully study the results. If the assumptions underlying the algorithms are not fulfilled in principle anything can happen. One should note however, that the performance of the program itself indicates such spurious behavior. For data which is indeed well approximated by a lower dimensional manifold, the average corrections applied should rapidly decrease with each successful iteration. This was the case with the NMR laser data and in fact, the correction was so small after three iteration that we stopped the procedure. For the white noise data, the correction only decreased at a rate that corresponds to a general shrinking of the point set, indicating a lack of convergence towards a genuine low dimensional manifold. Below, we will give an example where an approximating manifold is present without pure determinism. In that case, projecting onto the manifold does reduce noise in a reasonable way. See Ref. [64] for material on the dangers of geometric filtering.
